What vapor barrier installation involves

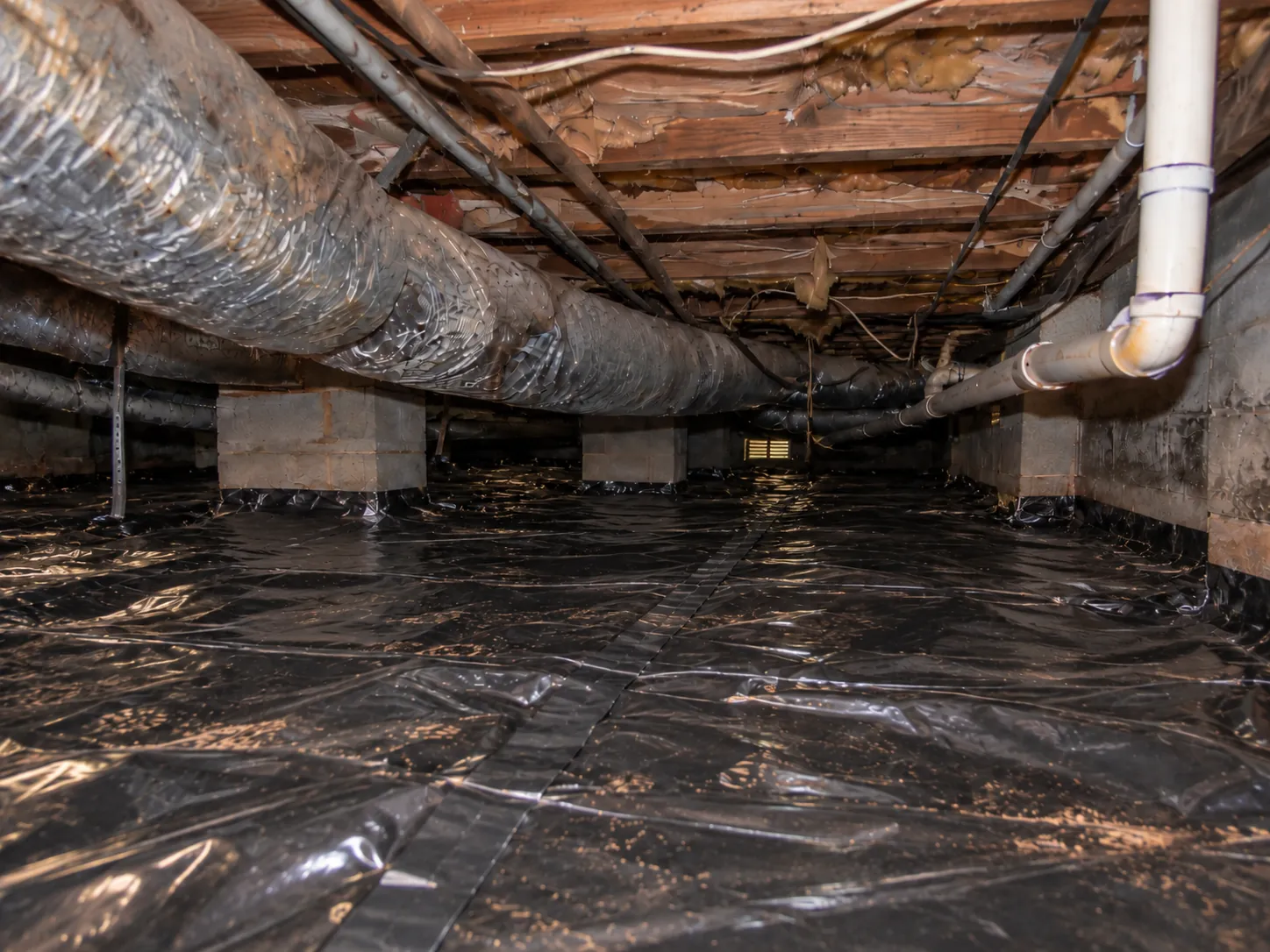

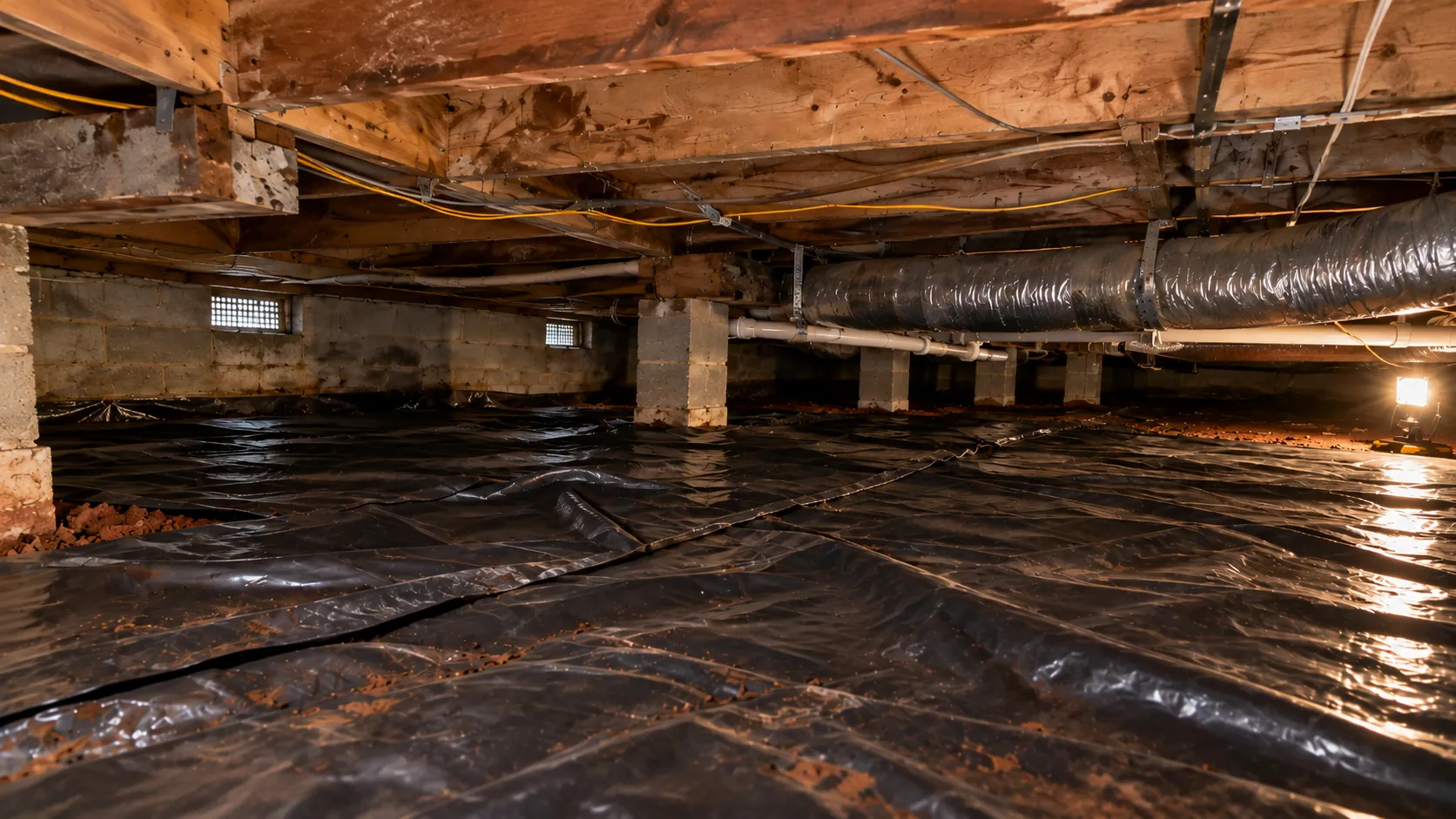

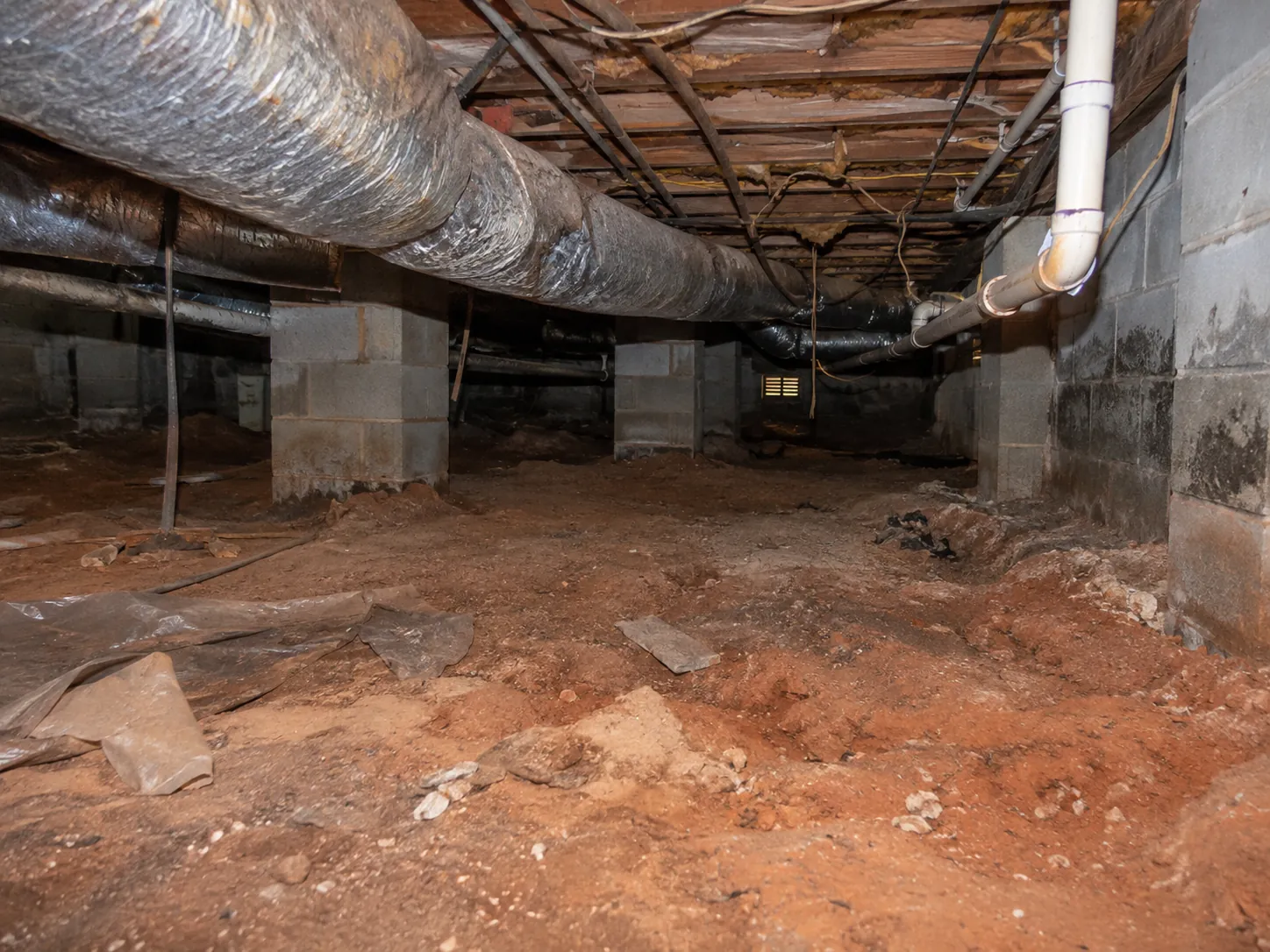

A crawl space vapor barrier - a ground vapor retarder, in code language - is a sheet of polyethylene or heavier reinforced liner covering the soil floor of a crawl space. Its job is narrow and worth stating precisely: it stops water vapor evaporating up out of the ground into the crawl space air. Damp soil under a house releases moisture continuously, whether or not anyone ever sees standing water, and on a graded Piedmont clay lot the soil near the foundation stays damp for a long time after rain.
What a vapor barrier does not do is anything about the air coming through the vents, and in a vented crawl space the vents stay open. That is the whole difference from encapsulation, and it is why a vapor barrier is the right answer for some Triangle houses and not for others.
How thick should a crawl space vapor barrier be?
Thickness is measured in mils, or thousandths of an inch.
| Material | Durability | Best suited to |
|---|---|---|
| 6-mil polyethylene, unreinforced | Meets the code minimum; tears where people crawl or equipment is dragged | A crawl space nobody enters, or as a base layer with protection added along service paths |
| Around 10 to 12-mil, reinforced | A woven reinforcing scrim resists tears and punctures | Crawl spaces with HVAC equipment, plumbing or a water heater that gets serviced |
| Around 15 to 20-mil, reinforced | The heaviest liners, marketed mainly for encapsulation | Heavy traffic, storage, or a barrier that may later become part of a sealed crawl space |
Advanced Energy’s guide to closed crawl spaces, written from its North Carolina field research, notes that unreinforced 6-mil - the material most commonly sold at home improvement stores - should be protected with an extra durable layer along traffic areas, and recommends considering thicker, reinforced material for durability and puncture resistance instead. The code sets the minimum; the right thickness depends on who will be crawling across it.
Coverage options
The other variable is how far the barrier goes.
| Coverage | What it covers | Vents | What to know |
|---|---|---|---|
| Floor only | All exposed soil, lapped and anchored | Open | The standard vapor barrier job, and the cheapest |
| Floor, turned up the walls | Soil, plus a band of the foundation wall with the edge fastened | Open | Stops edges creeping and covers damp block; still a vented crawl space |
| Floor, walls and piers, sealed | Everything, seams and edges sealed | Closed, with mechanical drying | Now a closed crawl space - encapsulation - with its own code rules and a permit |
The middle option is where quotes get confusing. Two contractors can both call a job “vapor barrier with wall coverage” and mean different things: one a loose sheet turned up a foot, the other a fastened, sealed liner. Ask how high it goes, how the top edge is fastened, and whether seams are taped.
What North Carolina code says for a vented crawl space
The 2018 North Carolina Residential Code, the edition currently in force, handles vented crawl spaces in Section R408. The pieces that bear on a vapor barrier:
| Rule | What it requires |
|---|---|
| Vent area | At least 1 square foot of net vent opening for every 150 square feet of crawl space ground area |
| Reduced vent area | May drop to 1 per 1,500 square feet where the ground is covered with an approved vapor retarder and the vents are placed for cross ventilation |
| Ground vapor retarder (when the reduced vent area is used) | At least 6-mil polyethylene or equivalent over all exposed earth, joints lapped at least 12 inches |
| Vent location | One vent within 3 feet of each corner of the building; vent dams where the bottom of a vent is less than 4 inches above finished grade |
| Insulation | In a vented crawl space, thermal insulation goes in the floor; wall insulation is not allowed as the only insulation |
| Ducts | Heating and cooling ducts in the crawl space sealed with mastic or an approved duct closure system |
| Access | An access opening at least 18 by 24 inches |
Two practical points follow. First, a vapor barrier in a vented crawl space is tied to the vent area: covering the ground is what lets a house use a tenth of the vent area otherwise required. Second, the code’s 6-mil figure is a minimum for that purpose, not a durability standard.
Once vents are closed and the barrier is sealed to the walls, the rules change completely: the crawl space falls under Section R409 for closed crawl spaces, which requires mechanical drying and drains at the low spots, and converting to it needs a building permit regardless of cost. Those requirements are set out on the encapsulation page and in North Carolina crawl space code requirements.
Is a crawl space vapor barrier worth it?
When the moisture is coming up out of the soil, yes: it is the cheapest moisture fix under a house, and a bare or torn ground cover is the first thing worth correcting. When the moisture arrives with outside air through the vents, a barrier helps and then stops helping. The test below tells the two apart.
Vapor barrier vs. encapsulation
The choice between them turns on one question: where is the moisture coming from?
A Triangle crawl space has two sources. The soil releases vapor upward all year. The outside air comes in through the vents, and from May through September that air commonly carries 70 to 85 percent relative humidity - and condenses on ducts and pipes cooled by the air conditioning above. A vapor barrier addresses the first source completely and the second not at all.
The practical test is inexpensive: cover the ground properly, put a hygrometer in the crawl space, and watch it through a hot, humid stretch. If humidity settles below about 60 percent, the barrier was the answer. If it stays high with the soil covered, the air is the source, and closing the space is what will change the number. Vapor barrier or full encapsulation? goes through that decision in detail, including the situations where a barrier is genuinely enough.
A vapor barrier can also be the first half of an encapsulation done in two stages. If that is the plan, ask for a liner heavy enough to stay in place when a wall liner is tied into it later.
How much does crawl space vapor barrier installation cost?
The published North Carolina range for a floor-only vapor barrier is $1,275 to $2,805 per home (CrawlSpaceCosts.com, North Carolina cost guide), with HomeGuide’s national figure of $1,200 to $4,000 to replace one shown for comparison. Both appear with their sources in the table below. A full encapsulation, by comparison, runs $5,000 to $8,500 for a crawl space of about 1,200 square feet; the encapsulation cost page works that through for four crawl space sizes. The worked example further down prices a typical 1,200 sq ft floor at each liner thickness.
What moves a vapor barrier quote:
- Thickness and reinforcement - the single biggest material difference between quotes.
- Wall coverage - floor only, or turned up and fastened to the walls.
- What comes out first - an old torn barrier, debris, or insulation that has fallen onto it.
- Access and clearance - a low crawl space with a small hatch takes longer to cover than a tall, open one.
- Seam treatment - lapped and anchored, or lapped, taped and sealed.
Every published range on the site is on the cost hub.
Can you install a crawl space vapor barrier yourself?
The material is simple, and a ground cover alone involves no electrical, plumbing or structural work. The hard parts are working in a low space for hours, getting full coverage around piers and pipes, and lapping and anchoring it so it stays put. If the crawl space takes on water or has visible mold, those need dealing with before any cover goes down.
Builder-grade barriers reaching the end of their life are a common call in Cary, Morrisville and Holly Springs.
