What structural repair covers under a crawl space house
A crawl space house stands on a short list of wood members, and structural repair is the work of putting any of them back into service:
- Floor joists - the parallel framing members directly under the subfloor, spanning from the foundation wall to a girder or between girders.
- Girders (main beams) - the heavier beams that carry the joists across the middle of the house, resting on piers.
- Piers and posts - the masonry columns or posts that hold the girders up off the ground.
- The sill plate - the timber bolted to the top of the foundation wall that the whole floor frame sits on. It is the lowest wood in the house and usually the first to rot.
- The band (rim) joist - the board that closes off the ends of the joists around the perimeter, directly above the sill.
- Subfloor - the sheathing the finished floor is laid on.
That list is also the order most homeowners find it in reverse. They feel the subfloor move, and the cause is two or three layers further down. Others first meet it as crawl space findings on a home inspection, when an inspector notes a soft sill or a damaged joist.
The repairs, in plain terms
Sistering a joist. A new, sound joist is fastened alongside the weakened one, full length or across the damaged section, so the two carry the load together. The old joist stays where it is. This is the most common structural repair in a crawl space, because it works from underneath without taking up the floor above, and it suits a joist that is weakened or cracked but still attached to a sound subfloor.
Replacing a joist. When a joist has rotted through at the end, or termites have hollowed it out along its length, it is removed and a new one installed. More labor, more disruption, and priced accordingly.

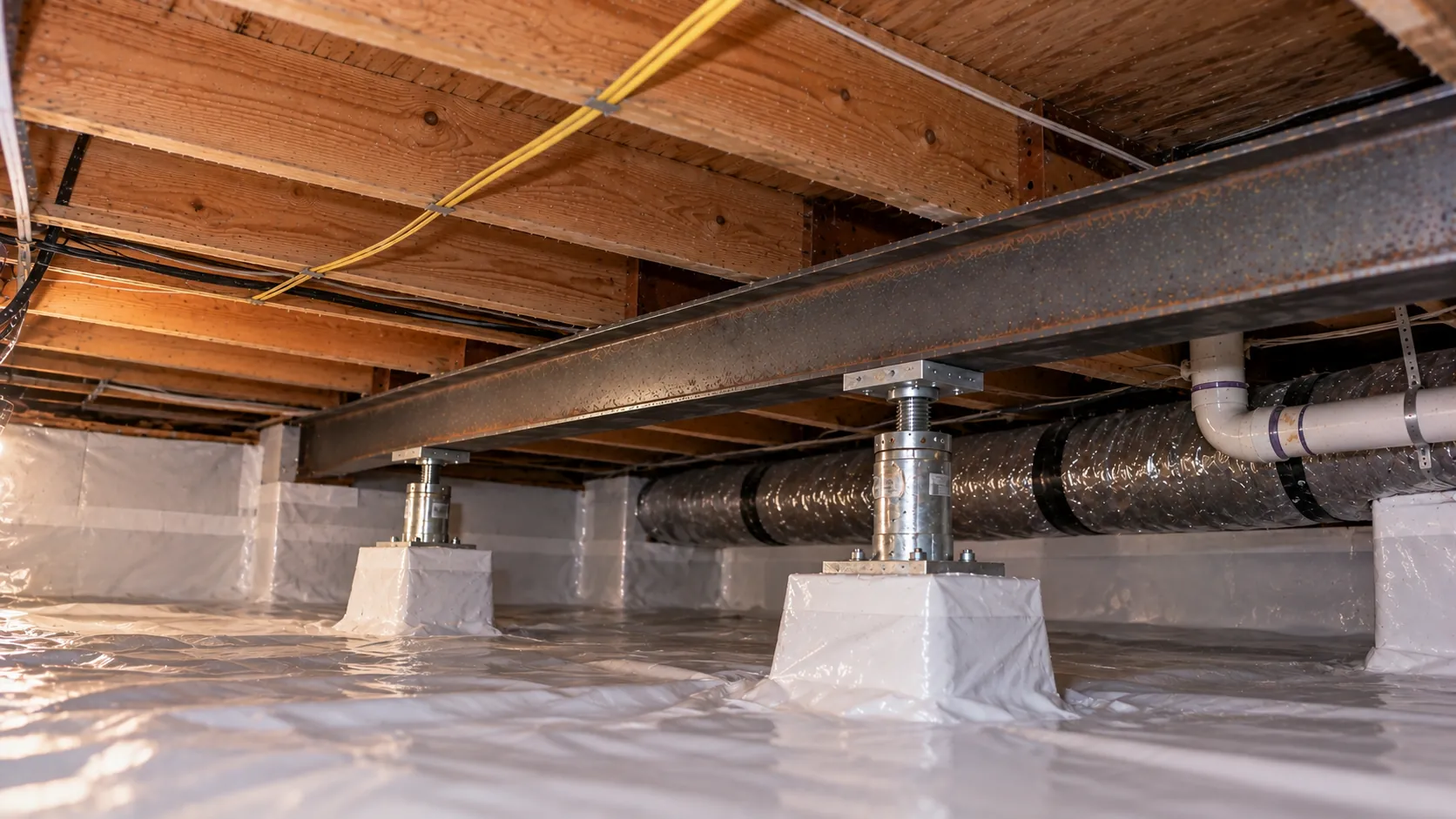

Adding support under a girder. A girder that sags between piers can be given an extra post and footing at mid-span, or the span shortened with an added beam. This is the usual answer to a floor that dips in the middle of a room with no rot in sight - the framing was undersized for the span, or a pier has settled.
Replacing a pier or post. Posts standing in damp soil, sitting on loose stacked block, or leaning off plumb are replaced on a proper footing. On older Triangle houses built on low crawl spaces, this is often the job that stops a slow sag.
Sill plate replacement. A rotted sill is cut out in sections while the wall above is temporarily supported, and new treated lumber installed. Because the sill sits on the foundation, it is also where termites most often reach the house.
Subfloor patching. Rotted sheathing is cut back to sound wood and patched, typically under a bathroom, a leaking appliance or an exterior door where water got in from above rather than below.
None of these is cosmetic. Every item on the list above is load-bearing, which is why permitting comes up below.
Rot, termites or beetles: find out which before the repair
The wood tells you what damaged it, and the answer decides who comes first.
- Decay (rot) leaves brown, cracked, cube-like wood that crumbles, or pale, stringy, spongy wood. It needs liquid water: the U.S. Forest Products Laboratory puts serious decay above roughly 30 percent wood moisture content, which humid air alone will not produce. So rot almost always points at a specific water source - a leak, a wet corner, wood in contact with the ground.
- Eastern subterranean termites build mud tubes up piers and foundation walls and leave galleries along the grain with soil in them. NC State Extension says they are found in every county in North Carolina, and the state’s residential code rates the whole state moderate to heavy for termite damage.
- Anobiid powderpost beetles leave round exit holes about 1/16 to 1/8 inch across, with fine powder. They need much less moisture than rot - around 15 percent wood moisture content - which a damp crawl space easily provides. Holes alone do not mean they are active; powder the color of fresh-cut wood does.
The full identification guide, with the table of what each looks like and who deals with it, is rot, termites or beetles?. The short version for this page: active insects are treated by a licensed pest control company before any new framing goes in, and the North Carolina Department of Agriculture’s own guidance says pest control professionals are not the people to evaluate or repair structural damage. That part is a contractor’s job.
The probe test
A contractor’s first tool here is an awl or a screwdriver, not a moisture meter. The Forest Products Laboratory’s inspection method is to push a pointed tool into the wood and lever out a splinter: decayed wood gives little resistance and breaks off short, while sound wood comes out as a long splinter. Wet but sound wood is softer than dry wood, so the test is read carefully. It is also the quickest way to tell mold on firm wood - a remediation job - from rot underneath it, which is this one.
Permits: load-bearing work is not exempt
Most small residential jobs in North Carolina do not need a building permit if they cost $40,000 or less. Structural crawl space repair is the exception worth knowing. The statute that sets the threshold, G.S. 160D-1110(c), lists work that still needs a permit at any cost, and the first item is “the addition, repair, or replacement of load-bearing structures.” Joists, girders, sills and posts are exactly that.
In practice, the contractor normally pulls the permit. What to confirm before signing is who is doing it, and whether the fee is in the price. The office that issues it depends on the address; the code requirements guide lists the permit office for each community this site covers.
Why the framing got wet, and what stops it happening again
The Forest Products Laboratory’s guidance on decay repairs is to correct the moisture condition that caused the damage; once it is corrected, the weakened wood only needs replacing with dry lumber. Where the moisture cannot be fully controlled, it recommends preservative-treated or naturally decay-resistant wood instead.
In a Triangle crawl space, “the moisture condition” is usually one of three things:
- A specific leak - a supply line, a toilet seal, a condensate line - which produces a local patch of rot directly under it. Fix the leak and the repair is done.
- Surface water after rain on a graded clay lot, which wets the soil, the piers and the sill along one side of the house. That needs drainage before new wood goes in.
- A crawl space that runs damp all summer. Wood takes on moisture from the air it sits in, and the Forest Products Laboratory’s tables put wood at roughly 16 percent moisture content in air at 80 percent relative humidity - inside powderpost beetle range, and enough for mold. That is the case for a vapor barrier or full encapsulation once the framing is sound.
The order matters. The Forest Products Laboratory warns against enclosing wet or infected wood until it has dried, and North Carolina’s closed crawl space rules keep a clear inspection gap of at least three inches between any wall liner and the sill, so the sill can still be checked for termites afterwards.
What to ask a contractor quoting structural repair
- Which members are you repairing, and by which method - sister, replace, or add support?
- What caused the damage, and does your price include fixing that, or is it a separate job?
- Have active termites or beetles been ruled out, or treated by a licensed company?
- Who pulls the permit, and is the fee included?
- If more damage is found once work starts, how is it priced - per joist, per foot of sill, or by change order?
The last question matters most. Framing damage is routinely found only after old insulation or an old liner comes out, and a quote that is silent on discovery is a quote that will change. Published per-piece figures - sistering, joist replacement, girders, sill plate - are on the structural repair cost breakdown, and every range on the site is on the cost hub.
Older housing stock is where this work concentrates: the mill-era bungalows of Durham, the historic cores of Hillsborough and Wake Forest, and Raleigh’s early-1900s neighborhoods.
